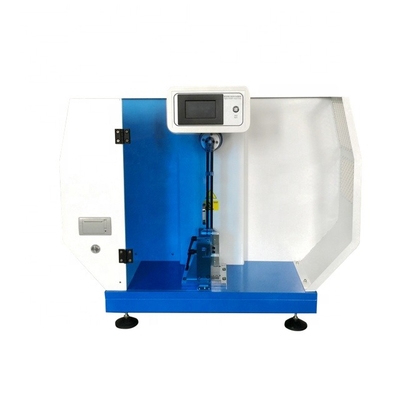

Factory Price Digital IZOD Plastic Impact Testing Machine and Charpy UWP Impact Testing Machine

Product introduction:

Factory Price Plastic Digital IZOD Impact Testing Machine and Charpy Impact Testing Machine is a new type of multifunctional cantilever beam and simply supported beam integrated impact tester. It simply disassembles the fixture and sample holder. The cantilever and simply supported beam test methods are automatically switched. It is easy to use, simple to operate and has high test accuracy. It is mainly used for the determination of impact toughness of non-metallic materials such as rigid thermoplastic molding and extrusion materials, rigid thermosetting molding materials, and fiber-reinforced thermosetting and thermoplastic composite materials.

Reference standards:

ISO179-2000 "Determination of Impact Strength of Plastic-Hard Materials Simply Supported Beams"

JB / T8762—1998 "Plastic simply supported beam impact tester"

ISO180-2000 "Determination of Impact Strength of Plastic-Rigid Cantilever Beams"

JB / T8761—1998 "Plastic cantilever beam impact tester"

ASTM D256-2010 "Test method for determining the impact strength of plastic IZOD pendulum"

Features:

1.Integrated impact of cantilever beam and simply supported beam, only need to easily remove the fixture and sample holder

High-precision intelligent controller and equipped with LCD display, can read data intuitively and accurately

2. The first domestic company to use a carbon fiber pendulum (patented), in the direction of impact, to improve the rigidity of the material, and to focus the impact mass on the center of mass of the pendulum.

3. Imported high-resolution digital encoder, the angle test accuracy is higher and more stable

4.The impact hammer and imported ball bearings complying with the aerodynamic principle greatly reduce the friction loss caused by the machine

5. Automatically calculate the final results. The test data can be saved in 24 groups and averaged.

6. Chinese and English operation interface can be selected, and test results can be selected from J / m, KJ / m², kg-cm / cm, ft-ib / in and other units

7. Built-in micro printer to print test data

Parameter:

                                      Company Introduction

Jinan Upwell Tech Machinery is a fast growing testing equipment manufacture and exporter which mainly committed to manufacturing and exporting high quality testing equipment and instrument with reasonable price to fulfill the needs of the most rigorous buyers.

Our main products are

Metal and Non-Metal Universal Testing Machine, Construction Material Testing Machine, Plastic & Rubber Testing Machine, Textile Testing Machine, Impact Testing Machine, Torsion Testing Machine, Hardness Tester and Testing Machine Accessory

Our products can 100% meet ISO,ASTM,BS EN,GB etc testing standard code. You only need provide us your testing code and we will offer you the best testing solutions .

Our company has nearly 10 years of experience in R&D testing equipment production and passed ISO9001 certificate. And also it obtained the equipment production license and CE certificate .We have professional technical team which can provide reasonable testing solutions, after-sales service, timely and comprehensive for each customer. Aiming at offering the most suitable solution and professional service, Persisting in client requirement oriented, offering high quality, reasonable price and cordial service which have formed a unique service mode.

UPWELL will does it best to understand the customer’s testing requirements and present the cost-effective testing solution. Let us help you to pick the testing solution that best fits your needs .

We sincerely expecting for cooperation with all global clients on the basis of Mutual-Trust, Mutual-Understanding, and Mutual-Benefit.

1. Is your company a trading company or a factory?
Factory + trade (integrated), 10 years of focus on the field of testing instruments, 8 years of export experience.

2. How to choose the most suitable product?
As long as you tell us what kind of test you need and the required specifications, our professional team will provide you with the best advice.

3. What is the delivery period?
Most of the time, our factory has stock. If there is no stock, the delivery time is usually 15-20 working days after receiving the deposit. If you have an urgent need, we can consider making special arrangements for you.

4. Do you accept customized services?
Yes, of course, we can not only provide standard machines, but also customized machines according to your requirements. Please feel free to tell us your requirements, we will try our best to meet your needs.

5. How about your warranty?
Usually, our warranty period is one year. During the warranty period, we can provide technical support and parts replacement. Therefore, our engineers may come to your location for better service.

6. How about the packaging of the machine and is it protected during transportation?
Our machines are packed in standard export wooden boxes and will not be damaged. We have delivered many test machines abroad by sea or air without damage.
